Crescent Energy Services owns and operates two work barges designed to serve as a platform for inland for P&A operations, but are available for other projects when needed. Each barge has a galley, 30 ton crane, spuds and can house twelve or more crew members and because each only drafts 3½ feet, are often chartered for third party coil tubing and decommissioning activities. See below for specific features of each.
Click on the image to enlarge.

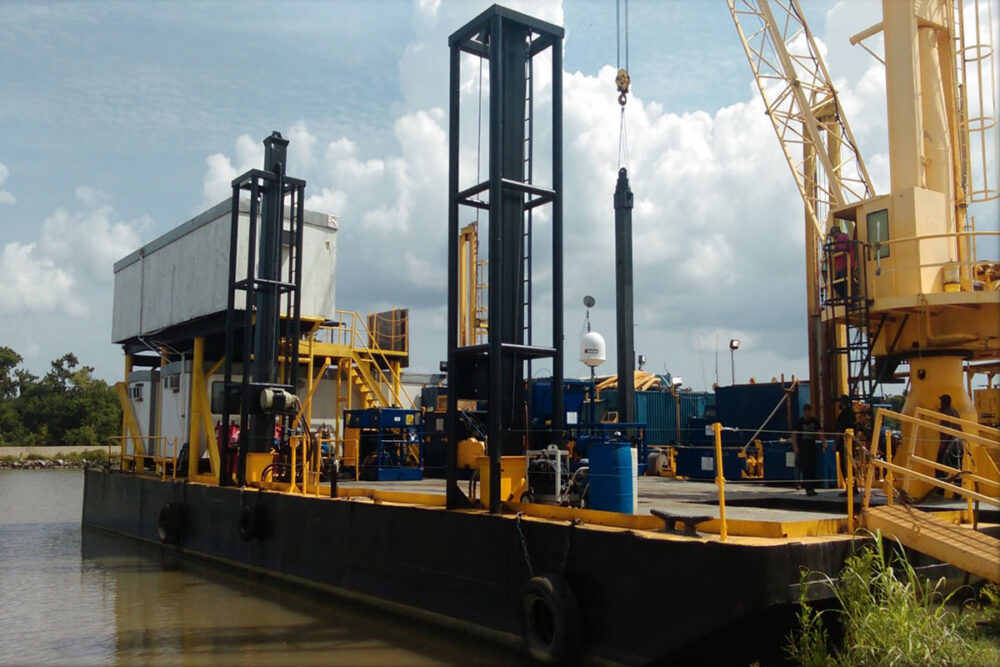

IM-IV Barge
- 100’ x 48’ with 20’ x 10’ Keyway w/ Cover
- 30-ton Sea King w/ 60’ Lattice Boom Crane
- Over 3,000 SF Clear Deck Space
- 3x Spuds with Hydraulic Hoists
- 2x 50 kW Generators w/ Yanmar Diesel Engines
- Satellite Communications w/ Phone, Internet, & DirectTV
- Fully Equipped Galley with Observation Deck Overlooking Ops Deck
- Crew and Supervisor Quarters w/ Heads for up to 18 personnel
- Private Company Representative Quarters w/ Head
- 800 Gallon Fuel Capacity
- 10,000 Gallon Potable Water Capacity
- Red Fox Type II Sewerage Treatment System
Click on the image to enlarge.

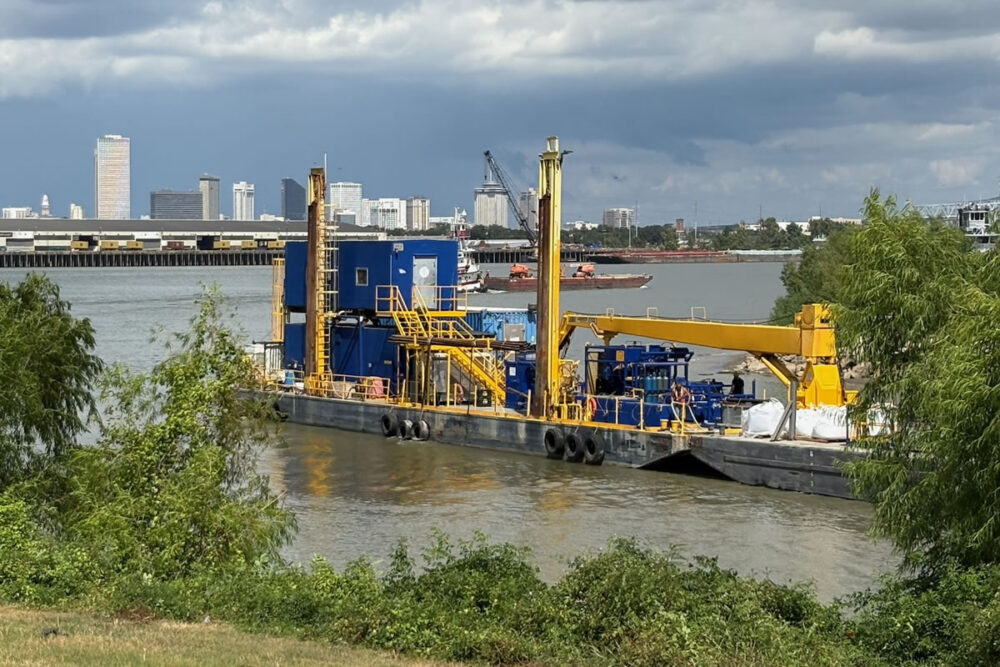

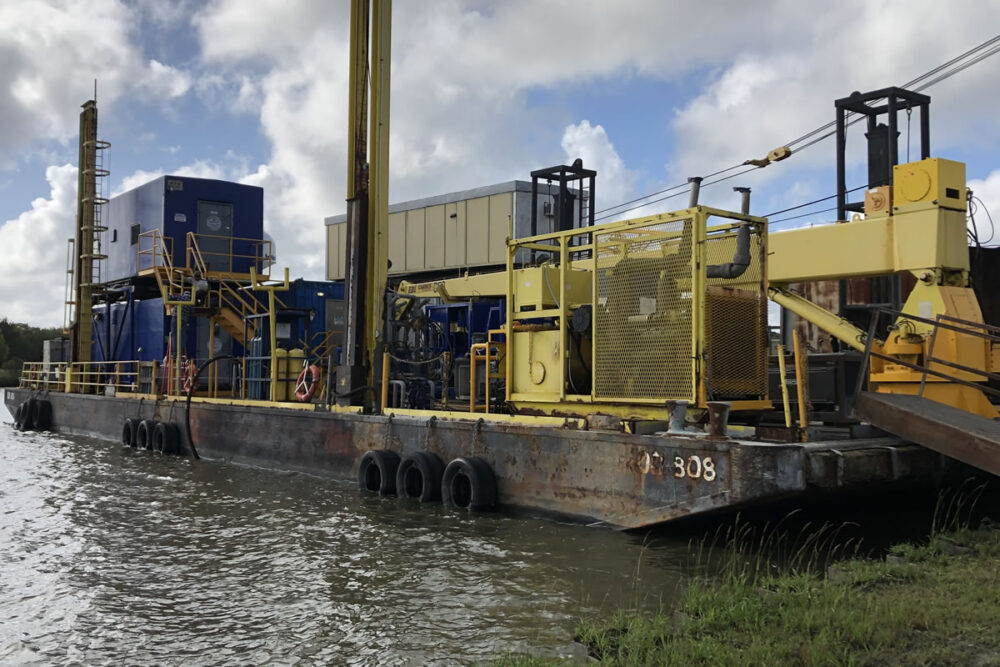

OB-808 Barge
- 120’ x 30’ Single Rake
- 30-ton EBI C60-60 Hydraulic Crane w/ 60’ box-boom
- Over 1,800 SF Clear Deck Space
- 2x Spuds w/ Hydraulic Hoists
- 2x 44 kW Generators w/ Yanmar Diesel Engines
- Satellite Communications w/ Phone, Internet, & DirectTV
- Fully Equipped Galley
- Crew and Supervisor Quarters w/ Heads for up to 12 personnel
- Private Company Representative Quarters
- 1,000 Gallon Fuel Capacity
- 3,300 Gallon Potable Water Capacity
- Red Fox Type II Sewerage Treatment System
Click on the image to enlarge.
